Development of 5MW floating offshore wind turbine system technology

The floating offshore wind turbine system is the first- attempt in domestic projects, although actively doing study and demonstration in USA, Japan, China headed by Europe.
Since 2018, ACE E&T has carried out development of 5MW floating offshore wind turbine system technology under the supervision of KETEP (Korea Energy Technology Evaluation and Planning) under Ministry of Trade, Industry and Energy.
부유식해상풍력 개발현황
Project Renewable energy core technology development
Project name Development of engineering technology for 5 MW class floating offshore wind turbine

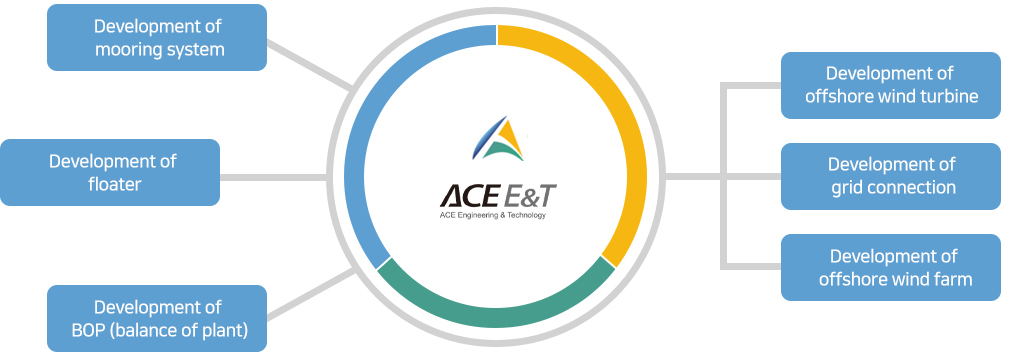

Research target - Site survey and selection of candidate complexes suitable for Floating Wind Power demonstration
- Wind turbine and floating body candidate selection and economic analysis
- The suggestion of power grid connection plan
- Development of engineering technology for large scale floating offshore wind turbine
Development period [1st Stage] 2018.6.1 ~ 2020.5.31 (24 Months)
Dedicated agency KEPET (Korea Institute of Energy Technology Evaluation and Planning
Host organization AceE&T Co., Ltd.
Participating institutions Ulsan Metropolitan City, LS Cable & System Ltd., KR (Korean Register), National Korea Maritime & Ocean University, University of Ulsan, Changwon National University, Hyundai Heavy Industries Co., Ltd.,

부유식해상풍력 개발현황

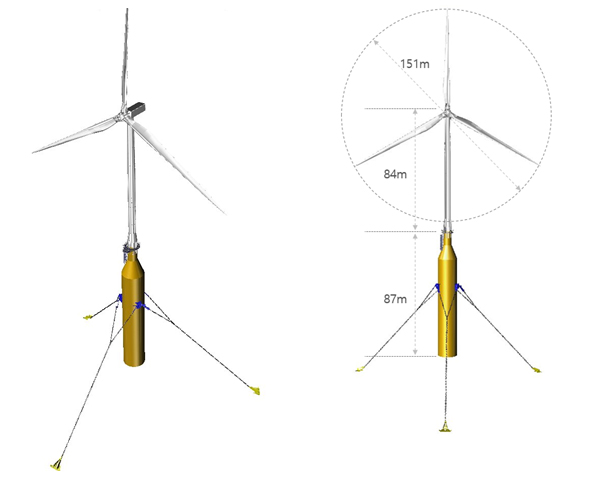

Principle dimensions for 5MW floating offshore wind turbine
Turbine Unison, U151 Wind Turbine
Wind Turbine Rating IIIA+
Wind Turbine diameter 151m
wind turbine capacity 5.0MW

Patent registration for Floating Offshore Wind Turbine Patent name

부유식해상풍력 개발현황
Title of invention Floating Offshore Wind Turbine
Patent registration No. 10-2107994
Patent registration date April 29, 2020
Patent application date Aug 14, 2019
Patent application number 10-2019-0099675
Patent holder AceE&T Co., Ltd.
